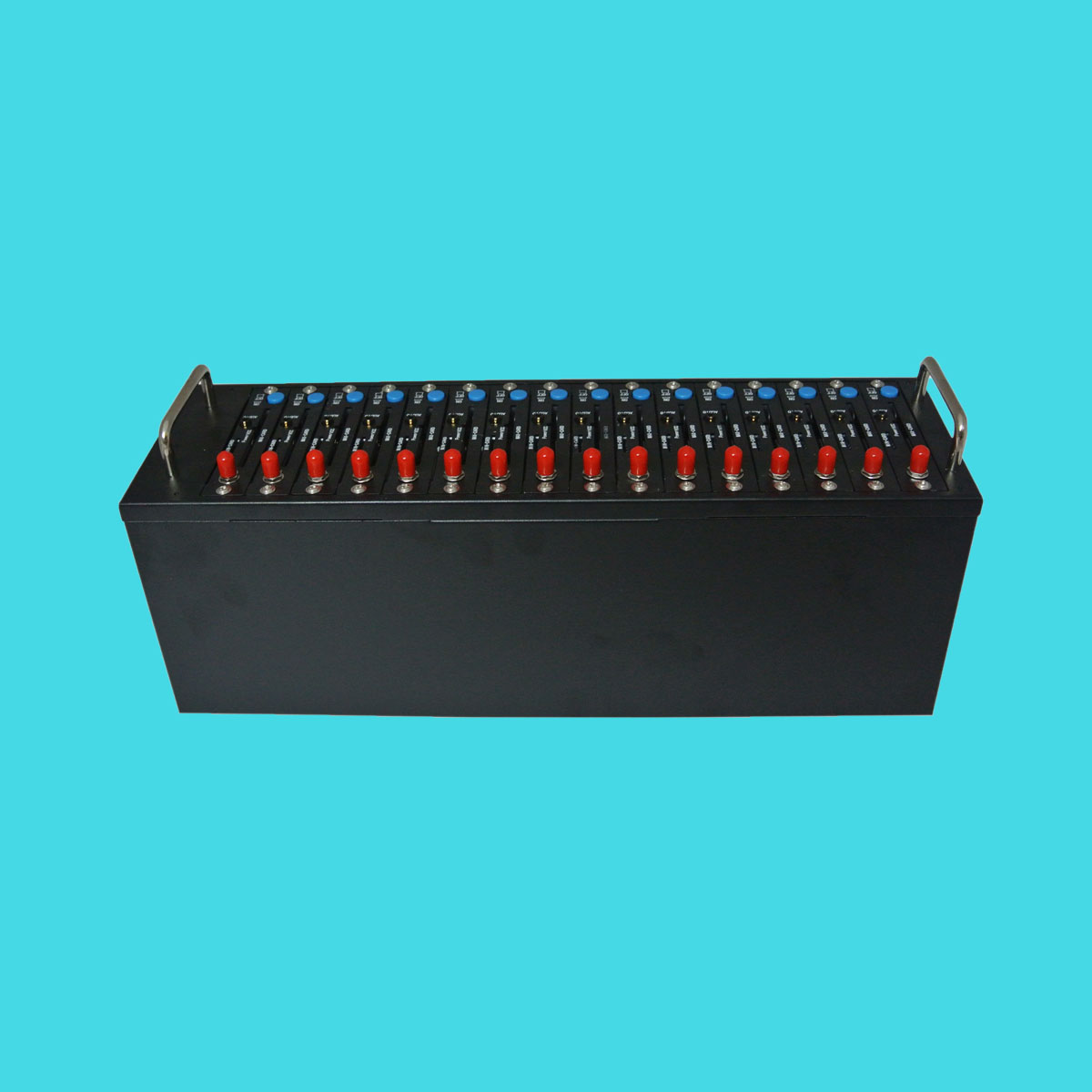

GT-5360E-16, 16-Port 3G HSPA+ Industry Modem is a based on GSM GPRS EDGE HSPA+ network platform, Support both 2G and 3G network.  With industrial grade design, flexible connectivity, faster text messaging and 3G HSPA+ high-speed wireless Internet access. GT-5360E-16 Can be used in many industries like finance, water conservancy, environmental protection, public security, oil, electricity, postal services, meteorology, telecommunications, transportation, etc . The USB interface can connect to PC USB slot directly.

Specification:

1. Model: GT-5360E-16
2. 16 Port 3G Modem Pool
3. USB Interface
4. Industrial 3G HSPA+ MODEM
5. dual-band UMTS / HSPA+ 900/2100MHz
6. Quad-band GSM / GPRS / EDGE 850/900/1800/1900MHz
7. SIMCOM SIM5360 3G HSPA+ industrial communication module
8. Power Voltage: 110v ~ 240V
9. Working Temperature: 40c ~ 75c

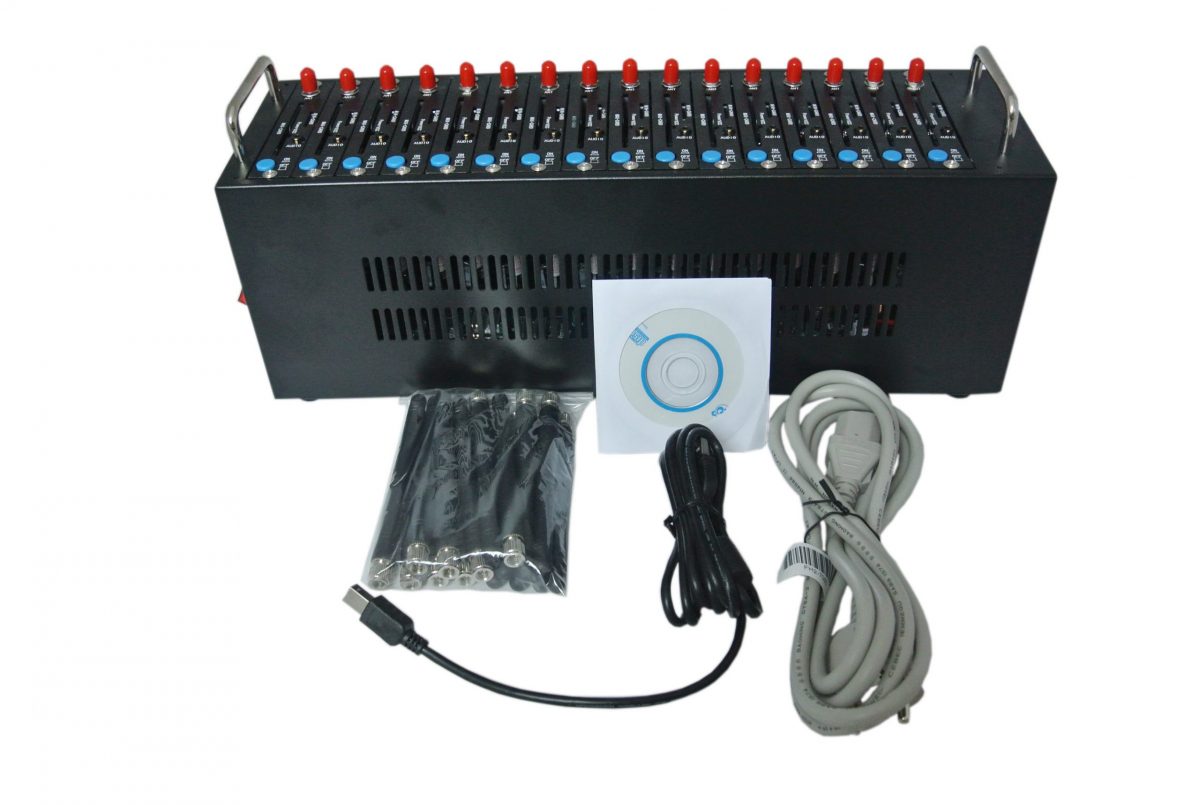

10. Accessories: Power cable, USB cable, 16 x Antennas and Windows driver CD

---

GT-5360E-16 16 Port 3G modem pool is based on the SimCom SIM5360E 3G modules.

Features of SIM5360E 3G module:

• dual-band UMTS / HSPA+ 900/2100MHz
• Quad-band GSM / GPRS / EDGE 850/900/1800/1900MHz
• RS232/USB interface
• GPRS multi-slot class 12
• EDGE multi-slot Class 12
• WCDMA 3GPP release 5

Output Power:

• UMTS HSPA+1900/850: 0.25W
• UMTS HSPA+2100/900: 0.25W
• GSM850/GSM900: 2W
• DCS1800: 1W
• PCS1900: 1W
• Standby current: 56mA
• Working current: 100-140mA
• Working temperature: -30 to +80 degrees
• Storage temperature:-40 to +85 degrees
• Size 85*54*25mm
• Weight 100g

Specifications for Data transfer

• HSPA+ : Max. 14.4Mbps(DL), Max.5.76Mbps(UL)
• WCDMA :  Max.384Kbps(DL), Max.384Kbps(UL)
• EDGE Class : Max. 236.8Kbps(DL),Max. 236.8Kbps(UL)
• GPRS :  Max. 85.6Kbps(DL), Max. 85.6Kbps(UL)

Specifications for SMS

• Point to point MO and MT
• Text and PDU mode

Other features

• USB Driver for Microsoft Windows 2000/XP/Vista/7/8
• USB Driver for Windows CE/Mobil
• USB Driver for Linux/Android
